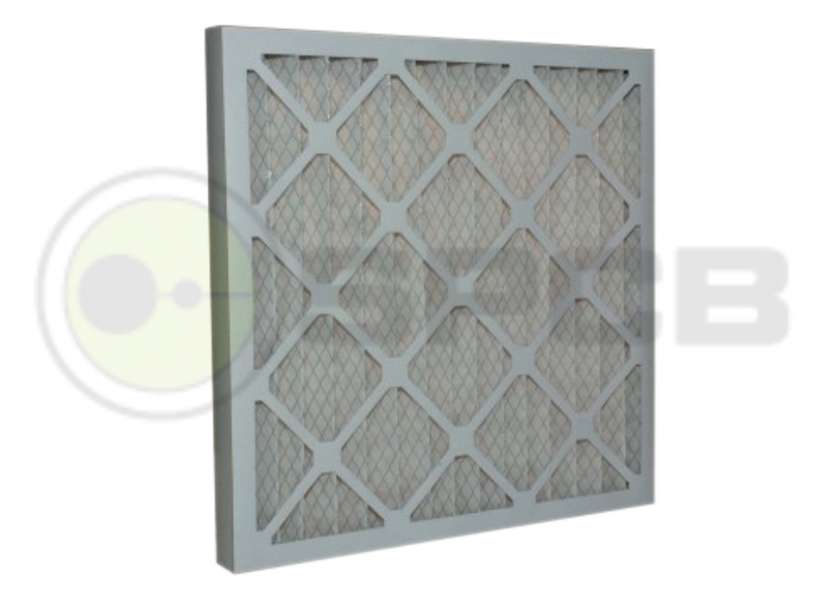

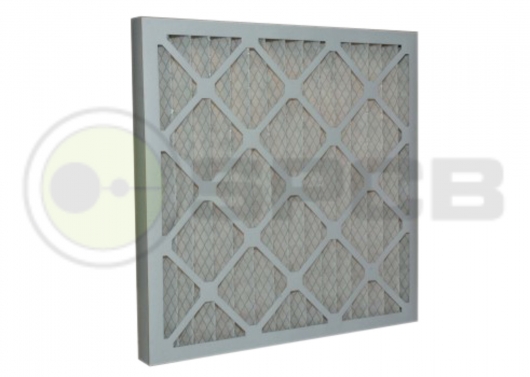

Pleated Panels G4
Standard pleated panels for the filtering of air entering or leaving a spray booth or product preparation area.
These panels are designed to filter the air ENTERING your spraying areas but can also be used as secondary extraction.
The pleated panel filter is a standard capacity disposable product offering a better than basic level of filtration, or pre-filtration in HEVAC applications. This product is made using patented Kimberly Clark Intrepid media, which delivers a constant level of filtration performance throughout its life and is made from continuous fibres so will not shed. It has a graduated density for even and greater holding of dust and is hydrophobic so will not load with air moisture. The AquaKote water repellent card frame with superior tear resistance when wet and dry is manufactured from a renewable source.
Classified G4 to EN779:2012
Depth 45mm
Rated Airflow 2.0m/sec
Initial Pressure Drop 45PA
Final Recommended Pressure Drop 200PA
Rated Airflow 418 m3/hr
